EUDI wallets with OpenID4VP in action (1/2): on the same device

The European Digital Identity wallet is coming, and applications accepting it will need to talk to it. This is the first of two posts showing how to do that with pac4j. Here, the wallet runs on the same phone as the browser; in the second post, it runs on a phone while the browser is on a computer.

1) Why prepare for EUDI wallets?

Regulation (EU) 2024/1183, better known as eIDAS 2.0, entered into force on May 20, 2024. EU member states must offer EUDI wallets by the end of 2026, holding person identification data (PID) and attestations such as driving licences or diplomas. Using a wallet remains voluntary.

Article 5f also requires acceptance by public services requiring electronic identification, certain private services requiring strong authentication, and very large online platforms requiring authentication. Private-sector obligations have conditions and exemptions, including for microenterprises and small enterprises, with a deadline tied to implementing acts, generally described as late 2027.

For applications in scope, wallet authentication is becoming an integration requirement worth preparing for.

2) Why it is hard

A wallet login looks simple: the user opens their wallet, sees what your application asks for, consents, and the wallet sends a signed proof. Behind this, the stack is anything but simple. Your application, the verifier in the vocabulary of the specifications, has to deal with:

And several ways to identify the verifier, several ways to reach the wallet, several response modes, each with its own validation rules. Implementing this by hand, and keeping it right as the specifications move, is a project in itself.

3) pac4j to the rescue

pac4j has one security model for every protocol: a Client starts the authentication, a callback receives the answer, a UserProfile ends up in the session. CAS, SAML, OpenID Connect, OAuth all fit in it, and a digital wallet does too.

The new pac4j-openid4vp module, which arrives with pac4j v6.6.0, adds the EudiWalletClient: you give it a DCQL query, a keystore and the issuers you trust, and it handles the signed request, the encrypted response, credential verification and the user profile. If you have already used pac4j, the integration will look familiar.

This first post walks through a complete example on the same device: the user is on their phone, clicks a link, the wallet opens, and an SD-JWT VC PID comes back. The second post does the same on another device, with a QR code and an mdoc PID.

4) A young protocol: test with demo wallets

OpenID4VP 1.0 was finalized in 2025, and wallet implementations are still evolving. Demo wallets let you test the integration while preparing for national EUDI deployments; expect differences between wallets and versions.

A very good one is the Paradym wallet by Animo, available for Android and iOS, and its playground which plays both the issuer and the verifier:

  1. install the Paradym wallet on your phone
  2. open playground.paradym.id on your computer and, on the Issuance page, choose PID SD-JWT, the card this post uses (PID mDoc is the one of the second post): the page shows a QR code, scan it with the Paradym wallet, accept the offer, and the card appears in the wallet
  3. keep the Trust Information page of the playground at hand: it shows the certificate of the playground issuer, which your application must trust.

The cards are Emma Charlotte van der Berg’s, a fictitious Dutch citizen: given name, family name, birth date, address…

Issue the card from this playground and no other: a PID issued elsewhere, by the older playground.animo.id for instance, is signed by another certificate and the truststore of section 7 refuses it. If the wallet already holds PID cards from another source, delete them, or at least pick the right one when the wallet asks which card to present.

5) ngrok: a real URL for the wallet

The wallet talks to your application over HTTPS from the phone: it fetches the request object and posts its response. Although the browser and wallet run on the same phone, the application runs on your development computer. localhost on the phone points to the phone itself, so it cannot reach that application.

The simplest way during development is ngrok, which exposes your local port on a public HTTPS address:

ngrok http 8080

It prints a public URL such as https://abcd-1234.ngrok-free.dev: this is the base URL of your application for the rest of this post. The free plan includes a development domain assigned to your account. Copy the URL ngrok prints into the property below. If the browser shows an ngrok warning page, choose Visit Site to continue.

6) Create the Spring Boot project

This is a plain Spring Boot web application, with spring-webmvc-pac4j as the pac4j implementation. Java 17 or later and Maven are enough.

mkdir -p wallet-same-device/src/main/java/org/pac4j/demo/wallet
mkdir -p wallet-same-device/src/main/resources wallet-same-device/metadata
cd wallet-same-device

The pom.xml:

<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>4.0.4</version>
        <relativePath/>
    </parent>
    <groupId>org.pac4j.demo</groupId>
    <artifactId>wallet-same-device</artifactId>
    <version>1.0-SNAPSHOT</version>

    <properties>
        <java.version>17</java.version>
        <kotlin.version>2.4.20</kotlin.version>
    </properties>

    <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
        <!-- the pac4j implementation for Spring MVC -->
        <dependency>
            <groupId>org.pac4j</groupId>
            <artifactId>spring-webmvc-pac4j</artifactId>
            <version>8.0.3</version>
        </dependency>
        <!-- the OpenID4VP support: the application is a verifier -->
        <dependency>
            <groupId>org.pac4j</groupId>
            <artifactId>pac4j-openid4vp</artifactId>
            <version>6.6.0</version>
        </dependency>
        <!-- the SD-JWT VC verification, an optional library of pac4j -->
        <dependency>
            <groupId>eu.europa.ec.eudi</groupId>
            <artifactId>eudi-lib-jvm-sdjwt-kt</artifactId>
            <version>0.20.1</version>
        </dependency>
    </dependencies>

    <build>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
            </plugin>
        </plugins>
    </build>
</project>

SD-JWT VC verification relies on the EUDI SD-JWT library, which pac4j declares as optional: applications verifying this format add it; applications verifying mdoc only do not need it. The kotlin.version property aligns Spring Boot’s managed Kotlin runtime with the version used by pac4j’s adapter.

The src/main/resources/application.properties file holds the base URL and enables the logs we will read at the end:

app.base-url=https://abcd-1234.ngrok-free.dev
logging.level.org.pac4j.openid4vp=DEBUG
logging.level.PROTOCOL_MESSAGE.OPENID4VP=DEBUG

And the usual Spring Boot entry point:

package org.pac4j.demo.wallet;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;

@SpringBootApplication
public class WalletApplication {

    public static void main(final String[] args) {
        SpringApplication.run(WalletApplication.class, args);
    }
}

7) Keys and trust

Two keystores go in the metadata directory. Run the keytool commands below from the root of the project, next to the pom.xml: the paths are relative to it, like the ones in the configuration.

The verifier key. EudiWalletClient signs requests and identifies the verifier by its certificate hash (x509_hash). Production EUDI deployments use a relying party access certificate issued by the ecosystem. This demo uses a self-signed certificate with an EC P-256 key, accepted by the tested Paradym wallet; self-signed verifier certificates are outside the HAIP requirements:

keytool -genkeypair -alias rp -keyalg EC -groupname secp256r1 -sigalg SHA256withECDSA \
  -dname "CN=pac4j demo verifier,O=pac4j" -validity 365 \
  -keystore metadata/verifier.p12 -storetype PKCS12 -storepass changeit

The issuers you trust. No credential is accepted unless its issuer is trusted, and pac4j trusts nobody by default. Copy the Issuer Certificate from the Trust Information page of the playground into a paradym-issuer.pem file, and import it into a truststore:

keytool -importcert -alias paradym -file paradym-issuer.pem -noprompt \
  -keystore metadata/pid-issuers.p12 -storetype PKCS12 -storepass changeit

8) Configure pac4j

The configuration is a Pac4jSecurityConfig of spring-webmvc-pac4j: the Config bean defines the client, and the interceptors say which URLs it protects.

package org.pac4j.demo.wallet;

import org.pac4j.core.config.Config;
import org.pac4j.core.config.properties.KeystoreProperties;
import org.pac4j.core.http.callback.PathParameterCallbackUrlResolver;
import org.pac4j.openid4vp.client.EudiWalletClient;
import org.pac4j.openid4vp.config.OpenId4VpConfiguration;
import org.pac4j.openid4vp.dcql.EudiPidQuery;
import org.pac4j.openid4vp.verifier.SdJwtVcVerifier;
import org.pac4j.openid4vp.verifier.trust.CertificateTrustedIssuer;
import org.pac4j.springframework.config.Pac4jSecurityConfig;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.beans.factory.annotation.Value;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.web.servlet.config.annotation.InterceptorRegistry;

import java.util.UUID;

import static org.pac4j.core.profile.definition.CommonProfileDefinition.FAMILY_NAME;
import static org.pac4j.openid4vp.profile.EudiPidProfileDefinition.GIVEN_NAME;

@Configuration
public class SecurityConfig extends Pac4jSecurityConfig {

    private static final Logger LOGGER = LoggerFactory.getLogger(SecurityConfig.class);

    @Value("${app.base-url}")
    private String baseUrl;

    @Bean
    public Config config() {
        // the request: signed with the key of the verifier, asking for two attributes of the PID as an SD-JWT VC
        final var configuration = new OpenId4VpConfiguration()
            .setKeystore(new KeystoreProperties("./metadata/verifier.p12")
                .setKeyStoreType("PKCS12")
                .setKeyStoreAlias("rp")
                .setKeystorePassword("changeit")
                .setPrivateKeyPassword("changeit"))
            .setDcqlQuery(EudiPidQuery.sdJwtVc(GIVEN_NAME, FAMILY_NAME));

        // the response: an SD-JWT VC is accepted if its certificate chain ends in the truststore
        final var issuers = new CertificateTrustedIssuer(new KeystoreProperties("./metadata/pid-issuers.p12")
            .setKeyStoreType("PKCS12")
            .setKeystorePassword("changeit"));
        // certificate revocation checking is disabled to simplify this demo; keep it enabled in production
        issuers.setCertificateRevocationEnabled(false);
        // the playground PID references a status list: this demo logs the reference and accepts the credential,
        // a real status checker must retrieve the list, verify it and check the entry of the credential
        configuration.addCredentialVerifier(new SdJwtVcVerifier().addTrustedIssuer(issuers)
            .setStatusChecker(credential -> LOGGER.info("credential status not checked: {}", credential.getClaims().get("status"))));

        // the demo PID carries no stable identifier: a new profile identifier at each login
        configuration.setProfileIdResolver(credentials -> UUID.randomUUID().toString());

        final var client = new EudiWalletClient(configuration);
        // keep the client name in the callback path to work around URL decoding in the tested wallet
        client.setCallbackUrlResolver(new PathParameterCallbackUrlResolver());
        return new Config(baseUrl + "/callback", client);
    }

    @Override
    public void addInterceptors(final InterceptorRegistry registry) {
        addSecurity(registry, "EudiWalletClient").addPathPatterns("/protected/**");
    }
}

A few configuration details:

The playground PID carries a status claim, a reference to an OAuth Token Status List: the list where the issuer marks the credentials it has revoked or suspended. pac4j refuses a credential carrying a status unless a status checker is configured, because only the application can decide how to read the list, and it never fetches it on its own. The checker of this demo only logs the reference and accepts the credential, so revocation is not checked here. A real checker retrieves the status list token, verifies its signature with the same trust as the credential and checks the entry at the index of the credential: that deserves a post of its own. See credential status. Disabling certificate revocation does not bypass this check.

9) The DCQL query

The query says what your application wants. EudiPidQuery.sdJwtVc(GIVEN_NAME, FAMILY_NAME) builds it in one line for the PID; this is what the wallet receives:

{
  "credentials": [
    {
      "id": "pid",
      "format": "dc+sd-jwt",
      "meta": { "vct_values": ["urn:eudi:pid:1"] },
      "claims": [
        { "path": ["given_name"] },
        { "path": ["family_name"] }
      ]
    }
  ]
}

One credential query, identified as pid, for an SD-JWT VC whose type is the EUDI PID, and the two claims to disclose. The same can be written by hand, in JSON when it comes from a configuration file:

configuration.setDcqlQuery("""
    {"credentials":[{"id":"pid","format":"dc+sd-jwt","meta":{"vct_values":["urn:eudi:pid:1"]},
     "claims":[{"path":["given_name"]},{"path":["family_name"]}]}]}""");

Or in Java, with access to expected values, alternatives (claim_sets, credential_sets) and trusted authorities:

configuration.setDcqlQuery(new DcqlQuery()
    .addCredential(new CredentialQuery("pid", CredentialFormat.SD_JWT_VC)
        .setVctValues("urn:eudi:pid:1")
        .addClaim("given_name")
        .addClaim("family_name")));

Whatever the wallet presents is checked against the query again by pac4j: the format, the type, the claims. The constraints are not left to the wallet.

10) The pages

Two pages are enough: a public home page, and a protected page which shows the profile. Both come from a single Spring MVC controller, WalletController, to create next to the two previous classes:

package org.pac4j.demo.wallet;

import org.pac4j.core.profile.ProfileManager;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Controller;
import org.springframework.web.util.HtmlUtils;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.ResponseBody;

@Controller
public class WalletController {

    @Autowired
    private ProfileManager profileManager;

    @GetMapping("/")
    @ResponseBody
    public String index() {
        return "<h1>Home</h1>"
            + "<p><a href='/protected/index'>1. Open the protected page: the wallet opens</a></p>"
            + "<p><a href='/callback/EudiWalletClient'>2. I have presented my PID in the wallet</a></p>";
    }

    @GetMapping("/protected/index")
    @ResponseBody
    public String protectedPage() {
        return "<h1>Protected page</h1><p>" + HtmlUtils.htmlEscape(profileManager.getProfiles().toString()) + "</p>"
            + "<p><a href='/logout'>Logout</a></p>";
    }
}

The second link of the home page is the only unusual thing: on the same device, once the wallet has answered, the user has to come back to the browser and tell the application so. The callback URL does exactly that, we come back to it below.

Run the application, with ngrok running next to it:

mvn spring-boot:run

11) The flow, step by step

Everything happens on the phone. First open the Paradym wallet and unlock it, then leave it in the background: the flow fails if the wallet is not already running when the browser hands it the openid4vp:// link. Then open the ngrok URL in the browser of the phone and click the first link of the home page: 1. Open the protected page: the wallet opens.

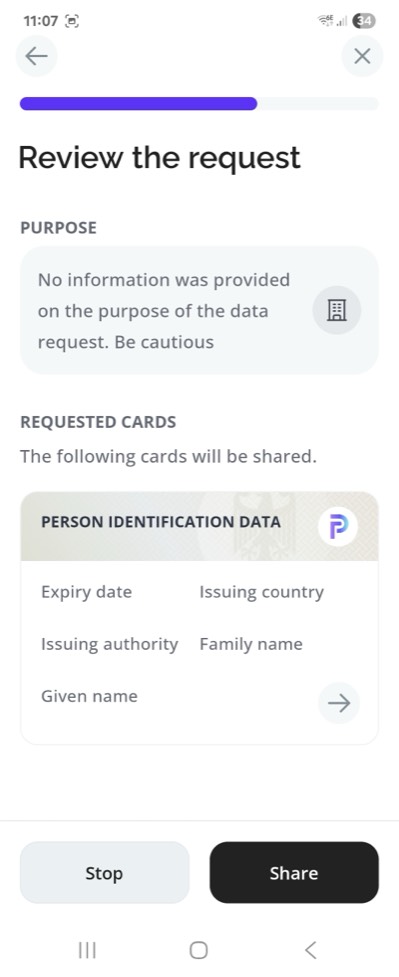

The wallet side of the flow, in four screens: the request to review, the warning about the unverified verifier, the PIN code, and the success screen. The steps below detail what happens behind each one.

Paradym: review the request Paradym: organization not verified Paradym: enter the PIN code Paradym: success, the information has been shared

1. The browser asks for the protected page. pac4j finds no profile, creates a transaction and redirects to an openid4vp:// URL. The browser hands this scheme to the operating system, which opens the wallet.

2. The wallet fetches the request. The URL only carries the identifier of the verifier and a request_uri: the wallet calls it, on the callback URL of your application, and receives the signed request object, with the DCQL query and the public key to encrypt its response.

3. The user consents. The wallet shows who is asking, the hash of your certificate for now, and what is asked: the PID, given name and family name. The user picks the card and confirms with their PIN.

4. The wallet posts its response. An encrypted JWT, containing the SD-JWT VC with the two disclosures and a key binding JWT proving the wallet holds the key of the credential, posted on the callback URL. pac4j decrypts, verifies and keeps the result for the browser session which started the transaction. The wallet shows that the sharing succeeded.

5. Back to the browser. Automatic return is not implemented by pac4j yet. Switch back to the browser and click the second link of the home page: 2. I have presented my PID in the wallet, the callback URL. pac4j retrieves the profile already validated when the wallet posted its response, stores it in the session and redirects to the page requested at step 1: the protected page shows Emma Charlotte van der Berg.

OpenID4VP has a mechanism for the wallet to redirect the browser at the end of a same-device flow (redirect_uri with a response_code), which pac4j does not support yet: it is on the roadmap of the module. In the meantime, a link is enough, or the small polling script of the second post, which works on the same device too.

12) What the logs say

The two loggers enabled in application.properties give two views of the flow. The PROTOCOL_MESSAGE.OPENID4VP logger prints the messages themselves, as they were sent or received, without any interpretation: one line per message, starting with >>> when the application sent it, <<< when it received it, followed by the other party, the browser or the wallet. The org.pac4j.openid4vp logger tells what pac4j did with them: the transaction created, the request object built, the response decrypted and verified, the profile built. Here is the flow above, shortened.

The redirection, step 1: a transaction is created, expiring five minutes later, and the browser is sent to the wallet URL. Note the request_uri, on the callback URL with the client name in its path, and the identifier of the verifier, the hash of its certificate:

EudiWalletClient : applying EUDI wallet settings for client EudiWalletClient: X509_HASH, DIRECT_POST_JWT, PID profile definition
OpenId4VpConfiguration : OpenID4VP configuration checked: 1 credential queries, verifier formats=[SD_JWT_VC, MSO_MDOC], signed requests=true
VpTransaction : transaction 51fef2…: - -> CREATED (client EudiWalletClient, response mode direct_post.jwt, expires at 2026-10-12T09:19:39Z)
PROTOCOL_MESSAGE.OPENID4VP : [tx 51fef2…] >>> browser wallet URL: openid4vp://?client_id=x509_hash%3ApntH00p6r9h1QcHOvJAVv90dkHvm5Jhx_GBAKcJH5CE&request_uri=https%3A%2F%2Fabcd-1234.ngrok-free.dev%2Fcallback%2FEudiWalletClient%3Fvp_tx%3D51fef2…&request_uri_method=post

The first two lines appear once, at the first request: the client initializes lazily. The configuration comes with a default verifier per format; section 8 replaced the SD-JWT VC one with the trusted issuers and the mdoc one stays, hence the two formats listed.

Step 2: the wallet fetches the request object, which is built for it and signed:

PROTOCOL_MESSAGE.OPENID4VP : [tx 51fef2…] <<< wallet GET vp_tx=51fef2…
OpenId4VpRequestObjectBuilder : client metadata built for transaction 51fef2…: formats=[dc+sd-jwt, mso_mdoc], response encryption methods=[A128GCM, A256GCM]
OpenId4VpRequestObjectBuilder : request object signed for transaction 51fef2… with ES256
VpTransaction : transaction 51fef2…: CREATED -> REQUEST_RETRIEVED (GET of the request URI)
PROTOCOL_MESSAGE.OPENID4VP : [tx 51fef2…] >>> wallet 200 eyJ4NWMiOlsiTUlJQmNq…

These demo traces show a GET even though the wallet URL advertises request_uri_method=post. pac4j accepts both methods; a wallet following the advertised method uses POST and can include its metadata and a wallet nonce.

The request object is a JWT whose header carries your certificate (x5c, with the rp alias as kid) and whose payload is the request. Decoded, its payload reads:

{
  "client_id": "x509_hash:pntH00p6r9h1QcHOvJAVv90dkHvm5Jhx_GBAKcJH5CE",
  "response_type": "vp_token",
  "response_mode": "direct_post.jwt",
  "response_uri": "https://abcd-1234.ngrok-free.dev/callback/EudiWalletClient?vp_tx=51fef2…",
  "nonce": "281fec06efb9492b95b45c09a537e624",
  "state": "7b99f8b2372b42d6b819942add896494…",
  "dcql_query": { "credentials": [ { "id": "pid", "format": "dc+sd-jwt", "meta": { "vct_values": ["urn:eudi:pid:1"] },
                  "claims": [ { "path": ["given_name"] }, { "path": ["family_name"] } ] } ] },
  "client_metadata": { "jwks": { "keys": [ { "kty": "EC", "use": "enc", "crv": "P-256", "alg": "ECDH-ES", "kid": "2f75d54c…", "x": "…", "y": "…" } ] },
                       "encrypted_response_enc_values_supported": ["A128GCM", "A256GCM"],
                       "vp_formats_supported": { "dc+sd-jwt": { "sd-jwt_alg_values": ["ES256"], "kb-jwt_alg_values": ["ES256"] },
                                                 "mso_mdoc": { "issuerauth_alg_values": [-7], "deviceauth_alg_values": [-7] } } },
  "aud": "https://self-issued.me/v2", "iat": 1791796479, "exp": 1791796779
}

Step 4: the wallet posts its response, a JWE encrypted with the ephemeral key published in the request. pac4j decrypts it, verifies the SD-JWT VC, its chain, its disclosures and its key binding, hands the status reference to the checker of section 8, and builds the profile:

PROTOCOL_MESSAGE.OPENID4VP : [tx 51fef2…] <<< wallet POST vp_tx=51fef2…&response=eyJraWQiOiIyZjc1ZDU0Yy…
OpenId4VpAuthenticator : response decrypted and authentication tag verified for transaction 51fef2…: alg=ECDH-ES, enc=A128GCM, members=[vp_token, state]
CertificateTrustedIssuer : issuer truststore loaded: 1 trust anchors
CertificateTrustedIssuer : certificate revocation lists loaded: 0
SecurityConfig : credential status not checked: {status_list={idx=18, uri=https://metadata.paradym.id/7f22b55a…/status-lists/86852c16…}}
SdJwtVcVerifier : SD-JWT VC verified for transaction 51fef2…: holder binding=true
OpenId4VpAuthenticator : presentation 1/1 verified for transaction 51fef2…, query pid: format=SD_JWT_VC, verifier=SdJwtVcVerifier
OpenId4VpAuthenticator : wallet response validated for transaction 51fef2…: 1 credential queries answered
EudiPidProfile : adding => key: issuing_country / value: NL / class java.lang.String
EudiPidProfile : adding => key: vct / value: urn:eudi:pid:1 / class java.lang.String
EudiPidProfile : adding => key: status / value: {status_list={idx=18, uri=https://metadata.paradym.id/7f22b55a…/status-lists/86852c16…}} / class …
EudiPidProfile : adding => key: family_name / value: van der Berg / class java.lang.String
EudiPidProfile : adding => key: given_name / value: Emma Charlotte / class java.lang.String
OpenId4VpAuthenticator : profile built for transaction 51fef2…: profile class=EudiPidProfile, definition=EudiPidProfileDefinition
VpTransaction : transaction 51fef2…: REQUEST_RETRIEVED -> RESPONSE_RECEIVED (presentation validated)
PROTOCOL_MESSAGE.OPENID4VP : [tx 51fef2…] >>> wallet 200 {}

The profile gets more than the two requested claims: the issuer also signs, outside any disclosure, the vct, the issuing country and authority, the validity dates, the holder key (cnf) and the status reference, and the wallet cannot withhold them. The two names are the only disclosed claims.

Step 5: the browser comes back to the callback URL, the validated profile is picked up, nothing is verified twice:

VpTransaction : transaction 51fef2…: RESPONSE_RECEIVED -> CONSUMED (the browser came back)
OpenId4VpAuthenticator : transaction 51fef2…: reusing the profile validated when the wallet posted its response, nothing is verified again

Note that the logs show the credentials as they travel, tokens included: enable them to diagnose, not permanently in production.

13) Limitations and what comes next

A few things to know before going further:

This integration is introduced in pac4j v6.6.0. The full documentation starts at OpenID for Verifiable Presentations, and the second post takes the wallet to another device, with a QR code and an mdoc PID.

Jérôme LELEU - November 2026
